Product Gallery
View product appearance, finishes, structure and application details.
Product Evidence
Application
Commercial restrooms, public buildings, hotels and OEM project supply.
Core Parameters
waterproof structure
Installation
Installation method can be matched to project drawings and product category.
Power & Maintenance
AC/DC or battery options are available; routine checks focus on power, valve and sensor windows.
Certification Evidence
GIBO provides certification support such as CE, RoHS, CQC, CUPC or NSF according to product type.
Difference
Compared with generic fixtures, this product is supported by GIBO sensing algorithms, valve control and OEM manufacturing experience.
Product Parameter:
Item Number： GBL-6170D
Power： DC 6V
Size： 55x157x195mm
Sensing distance：Ready sensor beside aerator:20±2cm(Adjustable),Wave sensor from side:1-6cm
Diameter of inlet： DN15(G1/2")
Mounting dimension： Ø35-45mm
Waterproof： IP56
Feature:
1. Automatic on/off: infrared sensor faucet automatically turns on and off.

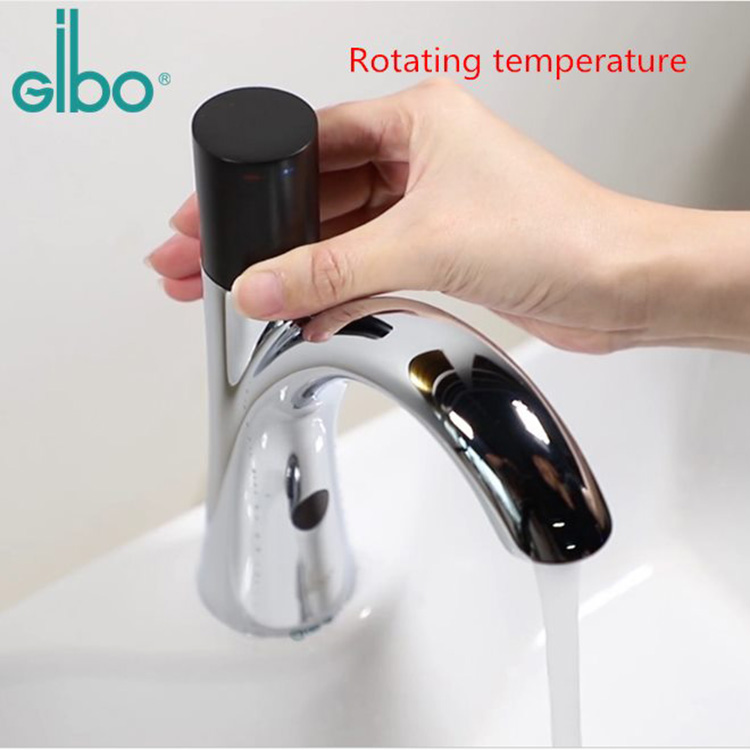

2. There is a mixer within the faucet to adjust water temperature in cold or hot water,and the handl could alsoe turn on/off the water
3. Washing protection time of ready sensor is set for 60 seconds, and 180 seconds for wave sensor.
4. Convinence:
1)Wave sensor mode , 1st Waving - Watering, 2nd Waving - Turn off. Three minutes overtime water protection.
2)Ready sensor mode, Watering when hand’s in the sensor range, Turn off automatic when hands leave. One minutes overtime water protection.
5. Hygienic: Touchless design provides hands-free and germ-free operation.
6. Water saving: Water efficient faucet reduces overall water usage without sacrificing water pressure.
7. Sensor indicator light will blink every 3 to 4 seconds alerting user to replace batteries.
8. Energy saving: Battery will last approximately 7,000 items/month for one year.
9. Indicator light will flash when battery power is lower than 4.5V.

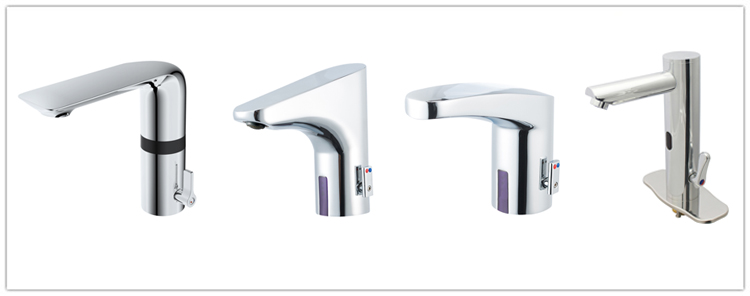

More Products:
